Emergency drainage system
Fast, safe water removal via the dump valve to prevent dirty water re-entering the water tank.
Session tracking & reporting
Veterinary staff can easily navigate treatment programs without tech headaches.
Tank-fed or pool-fed options
Choose the water system that best fits your clinic setup.
Optional accesories
Add in stool, isolation plate and other extras to your order for the full package.
Intuitive touchscreen with automatic updates
Veterinary staff can easily navigate treatment programs without tech headaches.
Precise speed control & adjustable incline
Adjust pace & intensity accurately for safe, effective rehabilitation of dogs of all sizes.

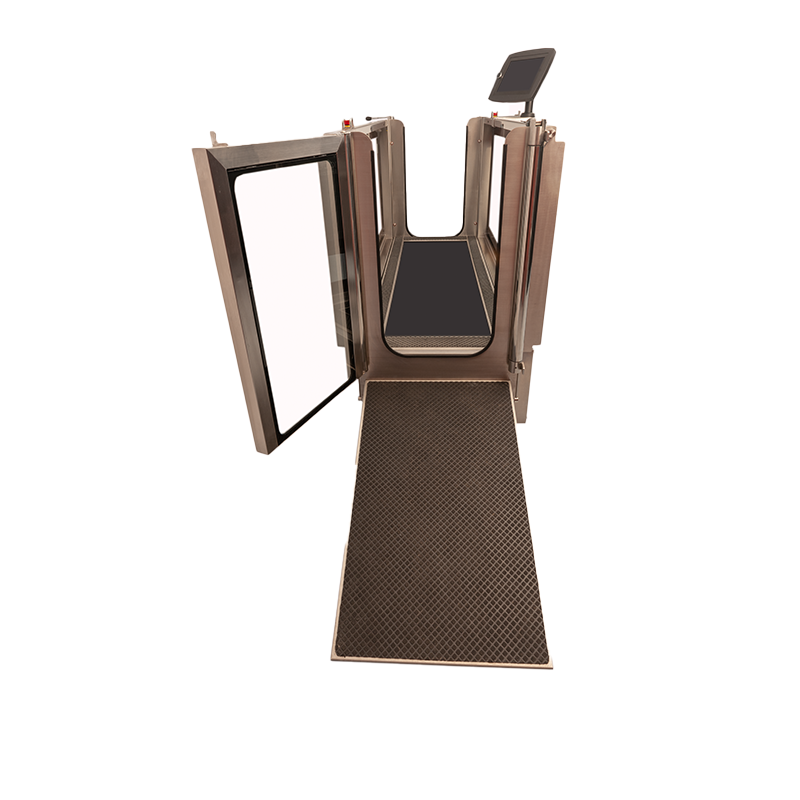

Walk-through easy access design
Veterinary staff can get patients in and out safely with minimal handling stress.
Easy-to-clean design
Full access to all areas and a liftable treadmill belt make hygiene fast and effortless, saving staff time.
Technical Specification
Treadmill Speed
Minimum : 0
Maximum : 2.8 metres per second (6 miles per hour)
Step : 1% of full speed
Fill Level
Minimum : 0
Maximum : 600mm (24")
Step : 10mm (0.5")
Water Temperature
Minimum : 5°C (41°F)
Maximum : 40°C (104°F)
Step : 1°C (2°F)
Treadmill Incline System
Manually adjustable up to 6 degrees as standard
Optional electronic system also available
Dimensions (L x W x H)
Treadmill Chamber : 1680 x 813 x 1220mm (66" x 32" x 48")
Controller (wall mounted) : 355 x 101 x 254mm (14" x 4" x 10")
Plant Pack : 1041 x 685 x 1397mm (41" x 27" x 55")
Weight
Treadmill Chamber and Plant Pack : 432Kg (932 lbs)
Operating Air Temperature
Minimum : 5°C (41°F)
Maximum : 35°C (95°F)
Humidity Range : 10-80% (no dew condensation)
Power Requirements
Voltage : 220/240V (Optionally 100-130V) AC 50/60Hz
Current : 30 Amps (Optionally 60 Amps @ 120V)
